RAKwireless Mini Meshtastic Starter Kit US915 RAK19003 + 4631 SKU 115093

*This item may ship separately

It's here- the Meshtastic Starter Kit Mini from RAKwireless.

Featuring a smaller RAK19003 baseboard with 2 module slots (vs. 4 module slots on full size starter kit).

Rokland is an authorized distributor for RAK Wireless. When comparing to price on RAK web site, it is not inclusive of shipping to USA or in some cases 25% import tariffs. When buying from Rokland, items ship from USA so no additional shipping or tariffs apply.

Product Features

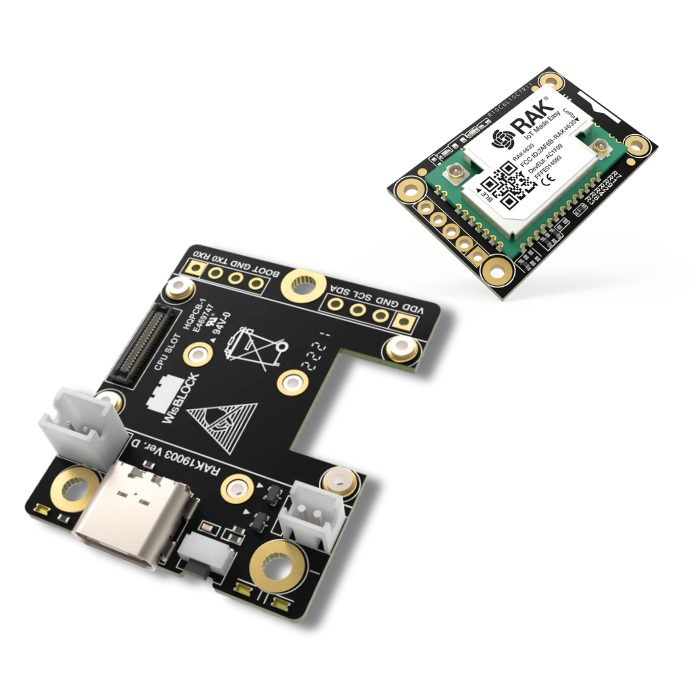

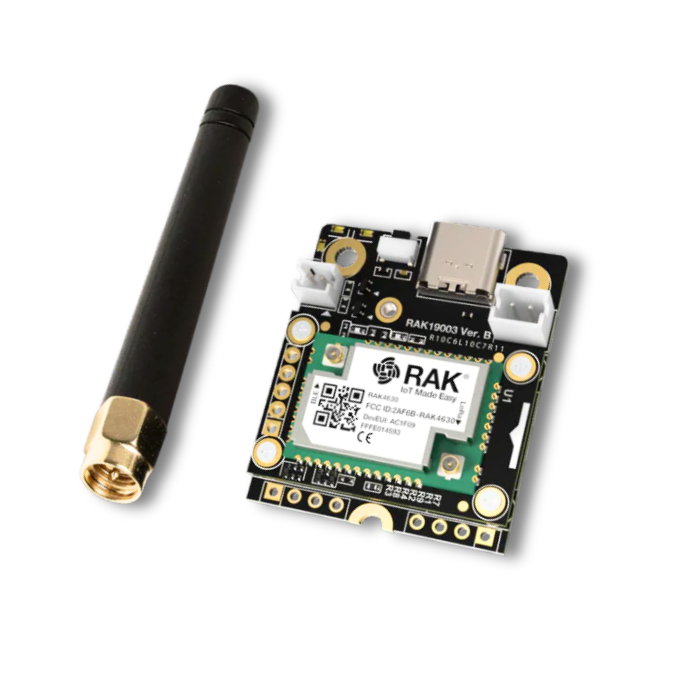

• WisBlock RAK19003 Base board and the RAK4631 WisBlock Core module, already flashed with the Meshtastic firmware.

• Easy Plug'n'Play slots for WisBlock Core MCU, small WisBlock Sensor, WisBlock Extra, small WisBlock Storage and WisBlock Power modules

• Small form factor

• Supports 3 different power supply sources

• Optimized for low power consumption applications

• I2C, UART, GPIO's an analog input accessible with solder contacts

• 2 user-definable LED's

• Reset button

• USB Type C debug port

• 1 slot for WisBlock Core MCU

• 2 slots for modules with 24pin WisConnector

Package Inclusion

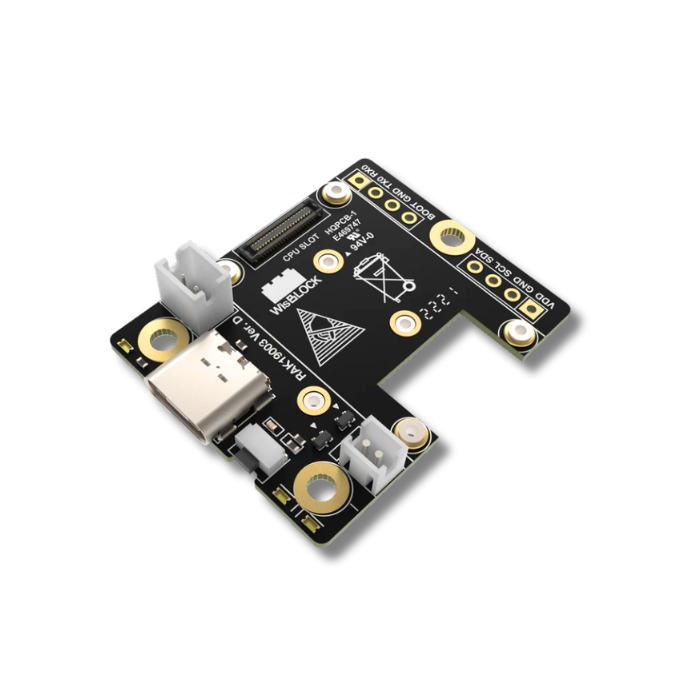

• 1pc WisBlock Base (RAK19003)

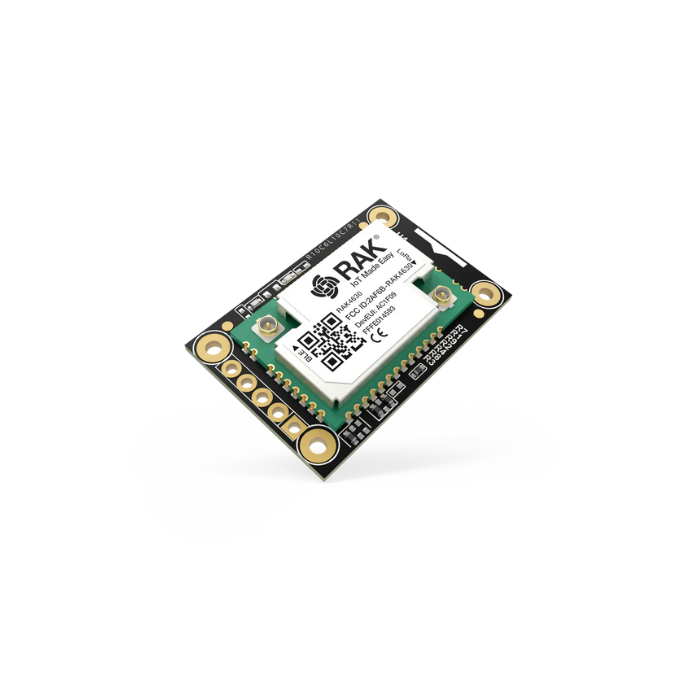

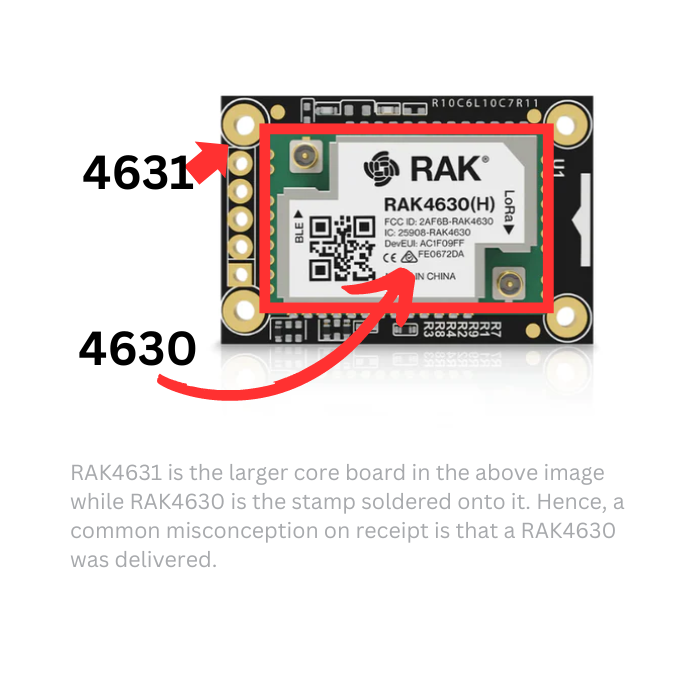

• 1pc WisBlock Core (RAK4631) contains RAK4630 already soldered

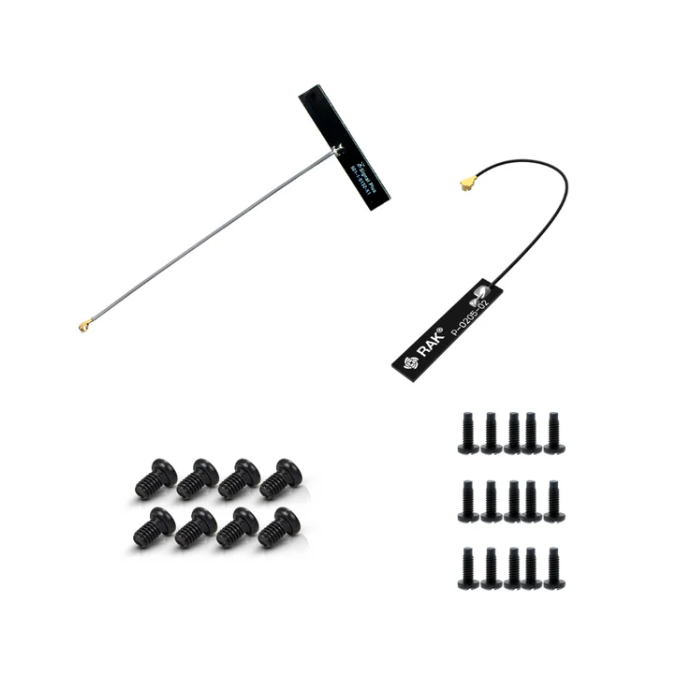

• 1pc IPEX LoRa PCB Antenna
• 1pc IPEX BLE PCB Antenna
• small dipole antenna
• IPEX to SMA connector for dipole antenna
• Assembly Screws
• USB Type C to Type A Cable
• US915 915 MHz version/AU915 compatible also- boards can be used in EU but will require a separate 868 Mhz antenna

Meshtastic is an off-grid messaging system using inexpensive hardware to create your personal mesh. Radios forward messages to the next node to distribute them over the network. Communicate kilometers/miles between nodes. Internet-connected relay nodes enable the conversation to move online too.

Documentation & Support

• Meshtastic Starter Kit & Mini Starter Kit (RAK4631 Core) - Rokland New User Guide & Support Page
• Rokland Support for RAKwireless Devices
• Sunnyway OEM Gluestick Antenna Datasheet
• RAK4631 Meshtastic Quick Start Guide
• Meshtastic Installation and Usage Guide

Questions about miners, antennas, and cables? Visit this page to learn more.

RAK LILYGO Heltec & Developer Board Warranty Policy – Rokland

Warranty & Support:

1-year limited manufacturers warranty- click for more details

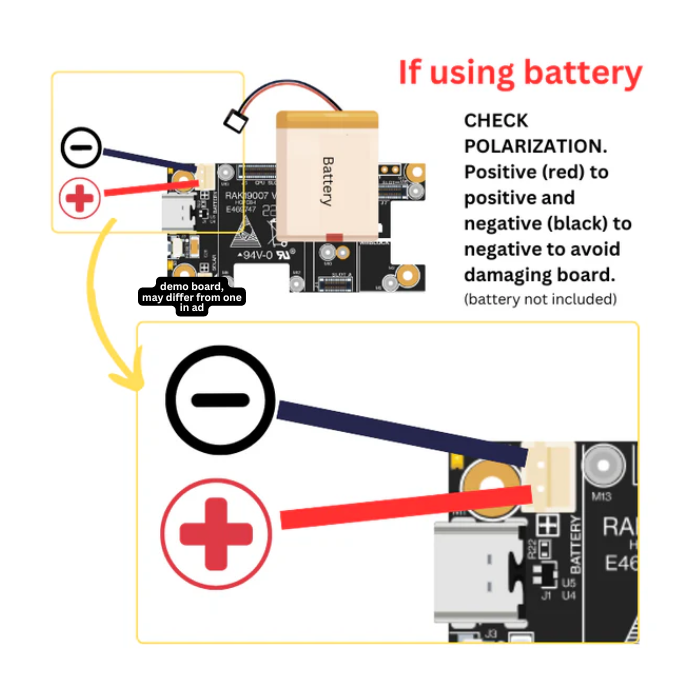

Battery connector defects are not covered if using a battery not sourced from Rokland. We have encountered problems and polarity issues with cheaper batteries and suggest contacting your battery manufacturer if your battery sourced elsewhere damages the battery connector.
