WisMesh Tag - Meshtastic compatible card sized node 868/915 Mhz

What Is WisMesh Tag?

The WisMesh Tag is your compact companion for location tracking and mesh messaging. Built for Meshtastic users who want something portable, reliable, and ready-to-go. Unlike DIY builds or limited designs like the T1000E, the WisMesh Tag delivers reliable outdoor performance with a 1000mAh battery, IP66 rating, and an easy reset button for firmware updates.

Why You Need WisMesh Tag

Stay connected and tracked off-grid with a rugged, portable, battery-efficient, and pre-configured Meshtastic device.

Why it’s useful:

• High-Capacity Battery – 1000mAh for long uptime in field deployments.
• Dust-proof and Waterproof GPS Tracker – IP66-rated enclosure makes it field-ready.

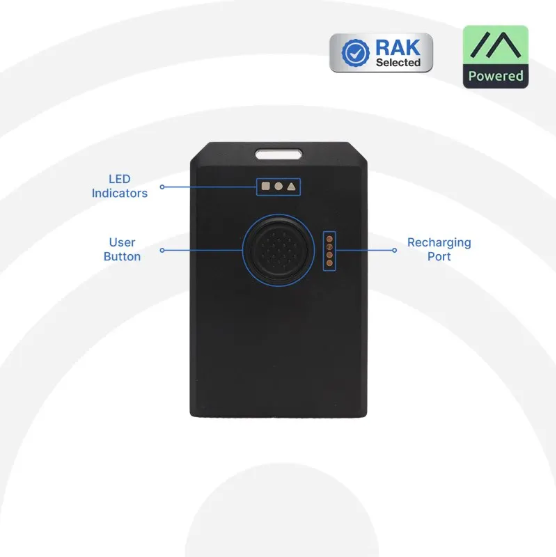

• User-Friendly Hardware – Tactile buttons, status LEDs, and reset functionality built-in.
• Developer-Ready – Magnetic charging, easy bootloader access, pre-flashed firmware for rapid prototyping.

Key Features of WisMesh Tag

• Meshtastic pre-flashed
• nRF52840 ultra-low-power core with 1MB Flash, 256KB RAM
• AT6558R GNSS module
• Integrated Antennas: LoRa, BLE, and GPS

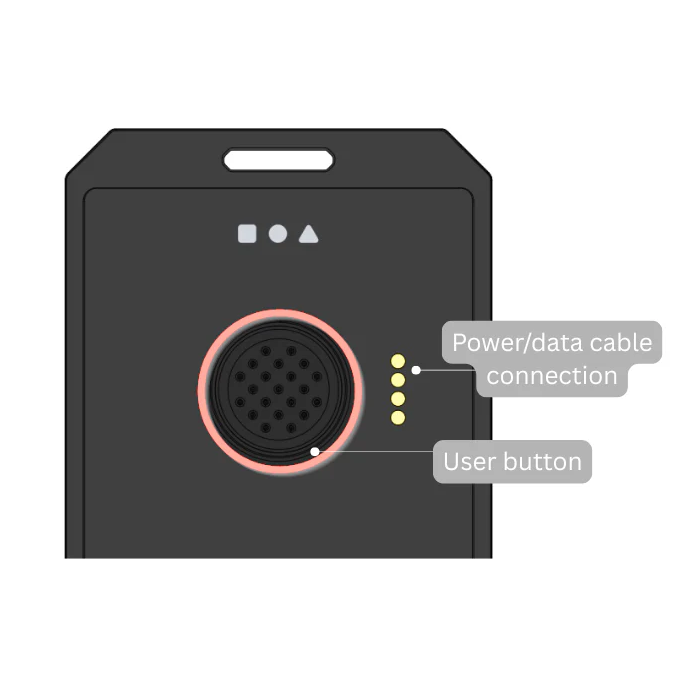

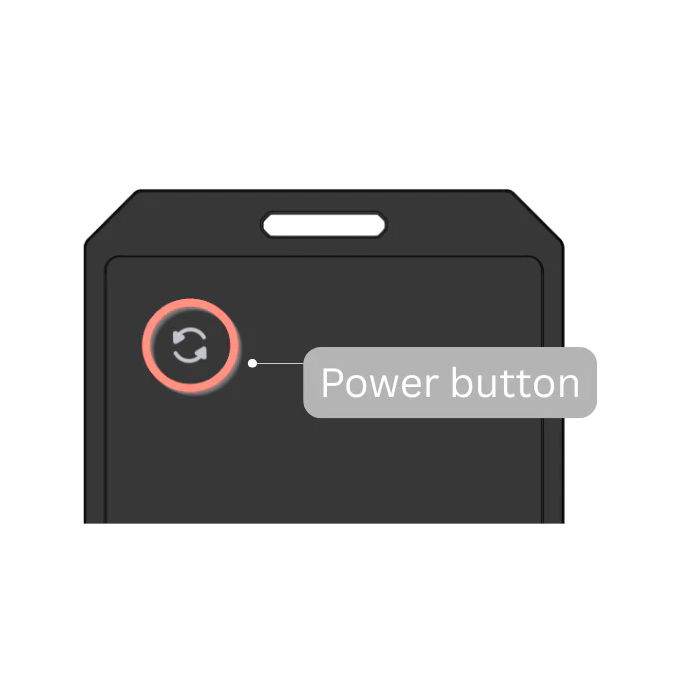

• Reset/Bootloader Button
• User Button for alarms, alerts, or future customization
• Magnetic Charge Port
• Status LEDs: heartbeat, BLE, charging indicators
• 1000mAh internal battery
• IP66 LoRa Device Enclosure
• Temperature range: -20℃ to +60℃

Key Benefits of WisMesh Tag

WisMesh Tag offers instant Meshtastic setup, enhanced GPS accuracy, and durable design. It is ideal for hassle-free outdoor tracking and messaging.

• Faster, more reliable GPS tracking: Optimized for quicker GPS fixes, so your location updates are timely and accurate.

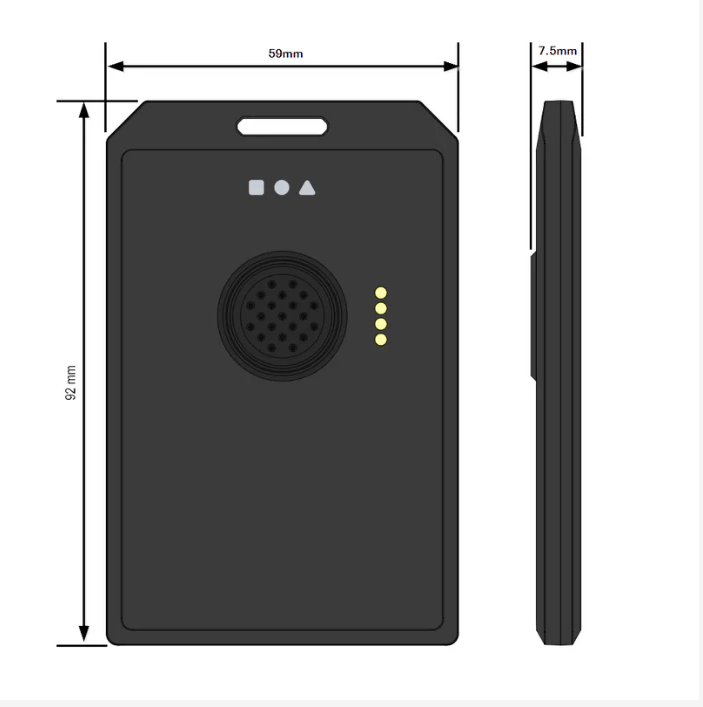

• Compact form built for real use: Slim, credit card-sized design fits in any pocket or pouch, making it ideal for discreet, everyday outdoor tracking.
• Strong and efficient mesh performance: Built with the Nordic nRF52840 and Semtech SX1262 LoRa transceiver, ensuring consistent long-range communication across your Meshtastic mesh network.

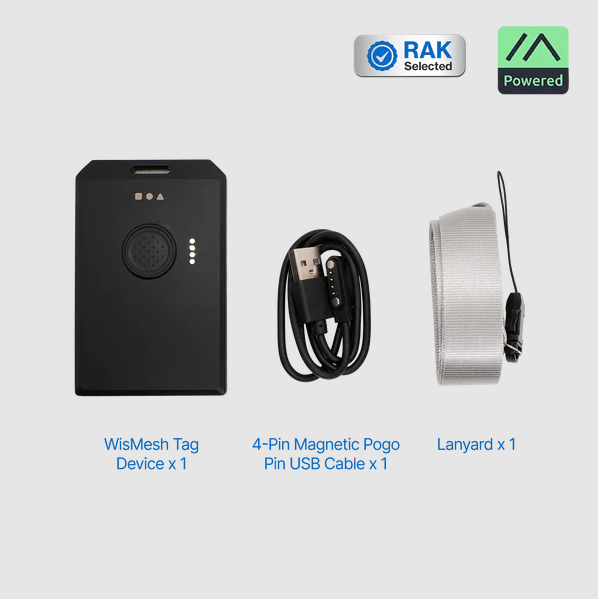

What’s in the Box

• 1 pc WisMesh Tag
• 1 pc USB Cable
• 1 pc Neck Strap

How to Get Started with WisMesh Tag

• WisMesh Tag First Steps
• WisMesh Tag Overview
• WisMesh Tag Quick Start Guide
• Meshtastic Generic Device Setup Guide
• WisMesh Tag Certifications (CE and FCC)
